WPG – Closed Type: Gearhead

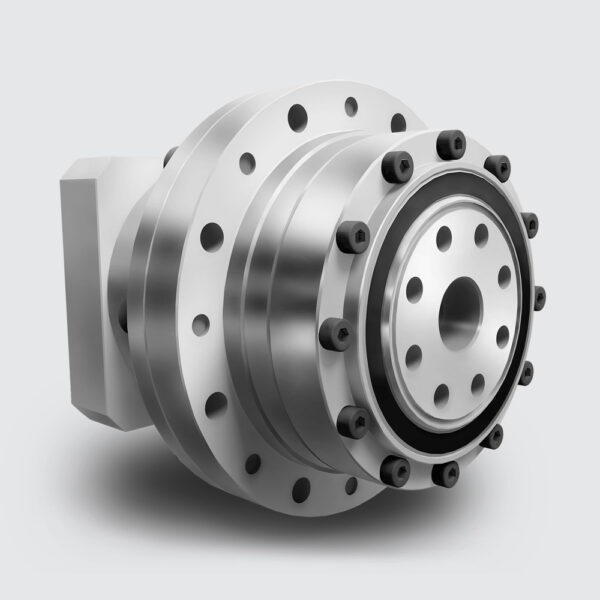

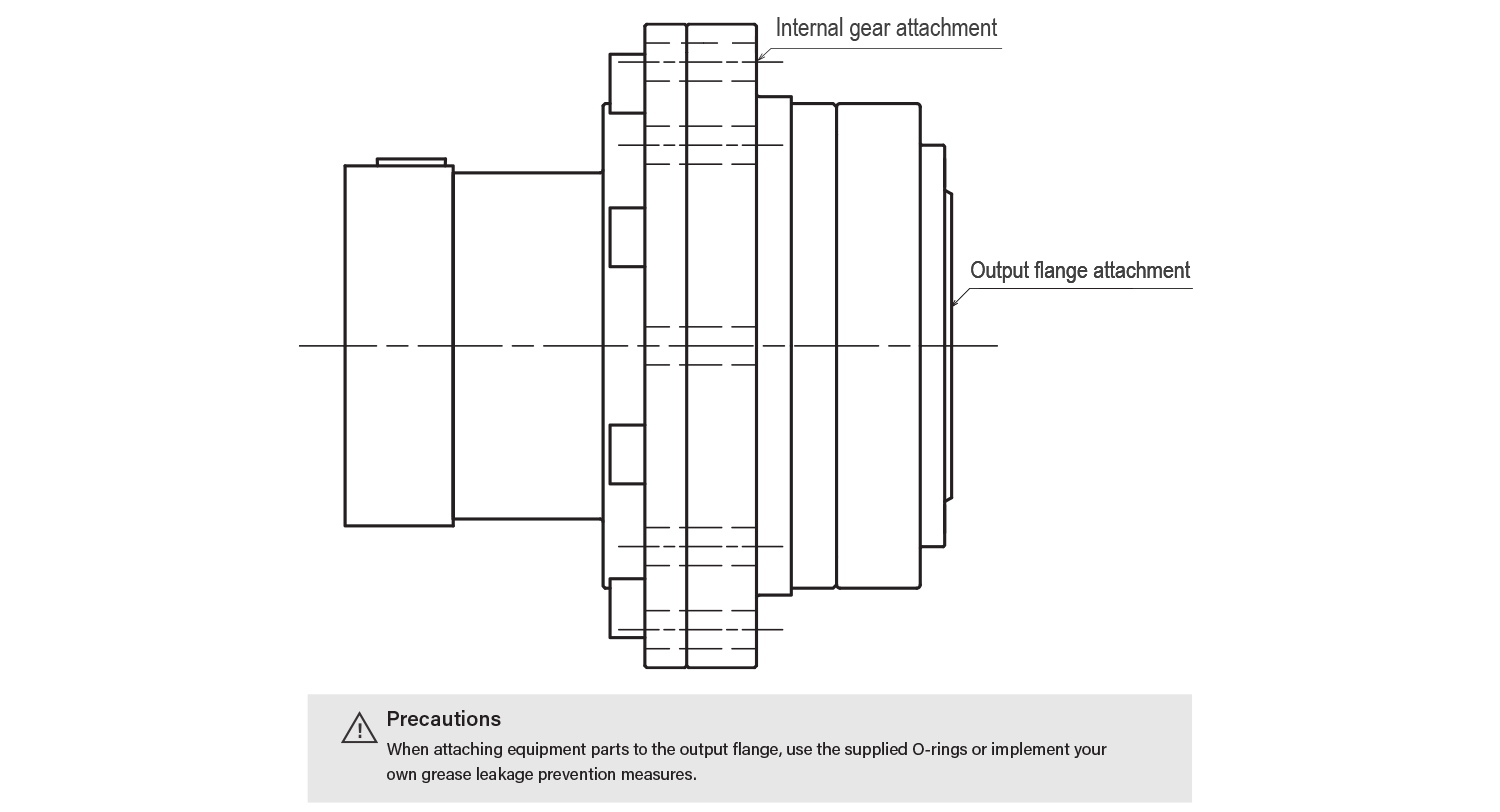

The Next Generation FLEXWAV WPG Series gearheads combine the industry leading accuracy, repeatability and torque-to-weight ratio of our WPU high torque strain wave units with the modularity, installation ease and universal motor mounting of our VR planetary products.

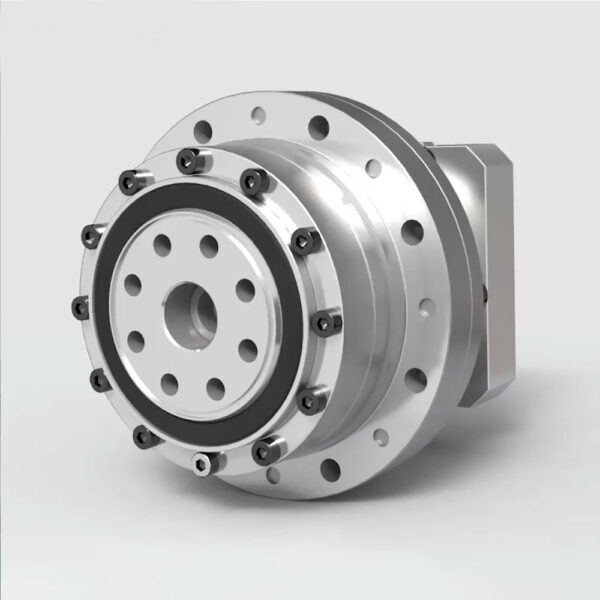

The FLEXWAV WPG Series gearhead is a compact, versatile zero backlash gearhead in 5 frame sizes with ratios as high as 160:1—all in a single stage. The WPG can be implemented into a wide range of robotics, machine tool and general automation applications with ease, resulting to product to market solutions faster than ever before.
Frame Sizes
Model Selection Flow
Strain Wave Technology
Flex gear and elastic bearing take elliptic shape with cam inserted.
Elliptical cam input is inserted into Flex gear and then mounted into internal gear; the flex gear engages the internal gear in 2 locations 180˚apart. This allows for high torque in a compact stable manner.
With internal gear fixed and cam (input) rotated clockwise, the flex gear (output) rotates counter clockwise. Direction and speed of rotation is determined by tooth count of gears and mounting geometry.
