VRT System
We offer a comprehensive lineup of rack and pinion drive systems with exceptional accuracy, system rigidity, feed forces, torque density and efficiency. Each component of the system—gearbox, rack and pinion—is optimized to meet these demands. Although we focus on highly dynamic applications, we also offer more cost-effective options for less challenging axes.
Helical and straight racks are both available, from module 1.5 to module 12, with quality levels from 5 to 10 and lengths up to 3000mm. Our core products are induction hardened and ground, but we can offer a variety of heat treatment and surface finish options. Pinions are offered for keyed shaft or ISO9409-1-A mounting interfaces.

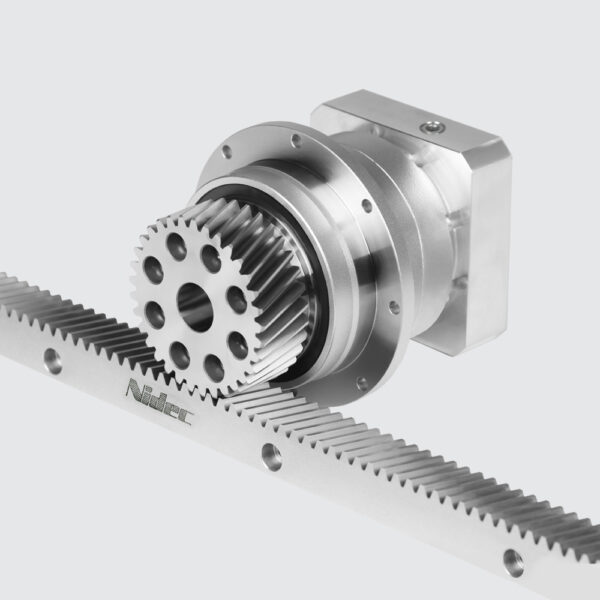

VRT Rack and Pinion System
- High performance system with feed forces up to 19,540N
- Max requirements for positioning accuracy, rigidity and smoothness
- Gearbox frame sizes 064-200mm. Oversized tapered roller bearings for extreme radial and axial forces
- Quality 6 rack in 1m lengths. ± 0.035 total pitch error. Induction hardened and ground
- Compact ISO 9409 Flange connection with optimal tooth geometry
- Fit for high end machine tool applications such as portal milling machines, turning machines and measurement systems
| Gear Reducer | Module Size | Max Feed Force (N) | Max Feed Speed (m/sec) | Linear Backlash (µm) |
| VRT 064 | 2 | 1713 | 5.0 | 0.04 |
| VRT 090 | 2 | 2352 | 6.5 | 0.04 |
| VRT 110 | 2 | 3692 | 6.5 | 0.04 |
| VRT 140 | 3 | 11016 | 6.8 | 0.06 |
| VRT 200 | 4 | 19540 | 7.5 | 0.08 |
