NEW

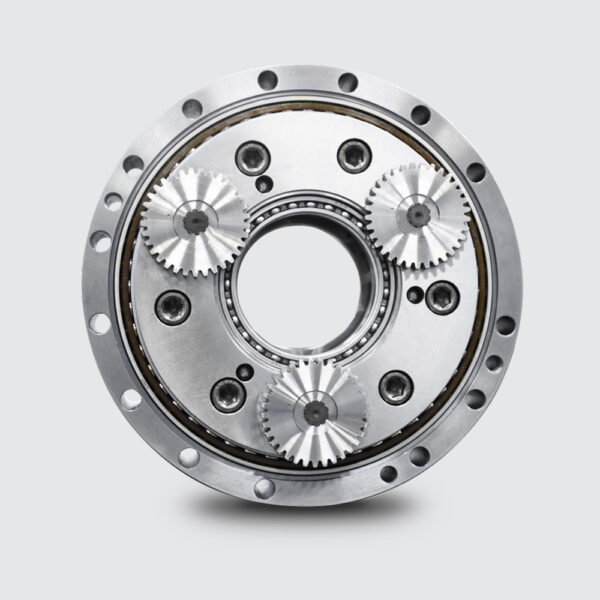

EH Series Type C
The Next Generation Nidec KINEX EH Series Type C is a hollow shaft type large size reducer that provides a pass through for cable or hose application solutions.
The Next Generation Nidec KINEX high precision cycloidal reducers are smooth and quiet providing exceptional movement for various applications, such as robots and machine tools.
Frame Sizes
Component Structure
Principle of Speed Reduction
1st Stage
• Planetary gear reduction mechanism
With the KINEX fixed on the frame, when the input gear rotates the planetary gear, the eccentric shaft directly connected to the planetary gear also rotates.
2nd Stage
• Epicyclic gear reduction
Due to the rotation of the eccentric shaft, the wheel incorporated in the eccentric part moves eccentrically, and the wheel rotates while meshing with the pins. Since there is one more pin than the number of teeth on the wheel, the wheel rotates by one tooth with each rotation of the eccentric shaft, and the output flange that supports the eccentric shaft rotates synchronously with the wheel.

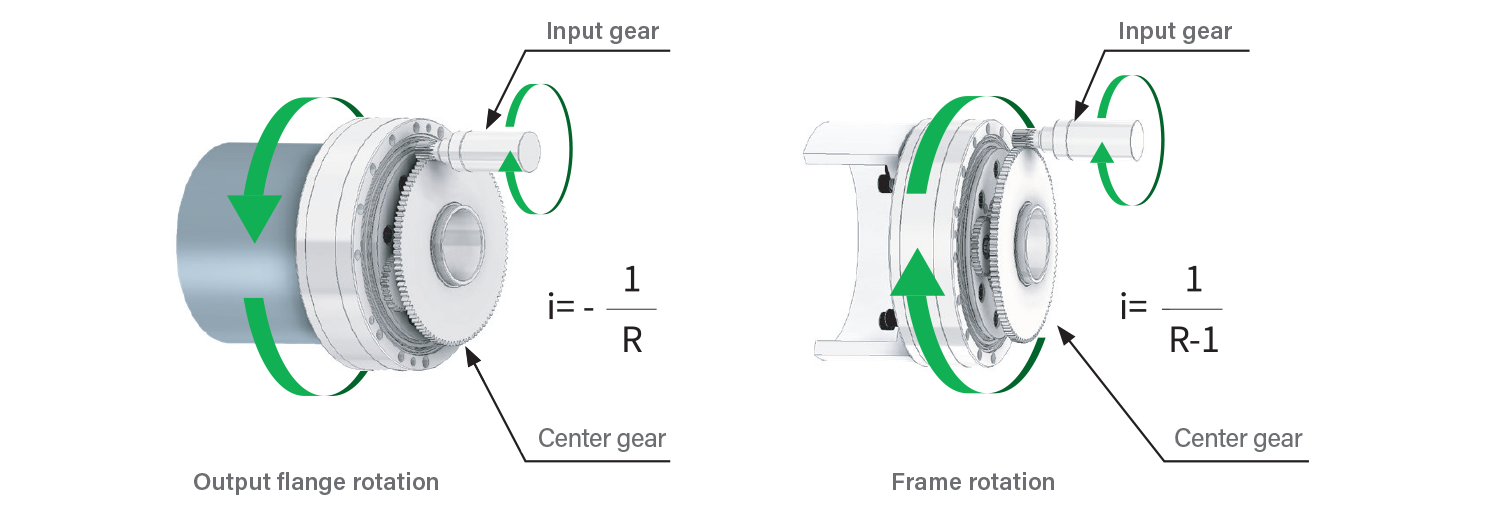

Direction of Rotation and Reduction Ratio Example

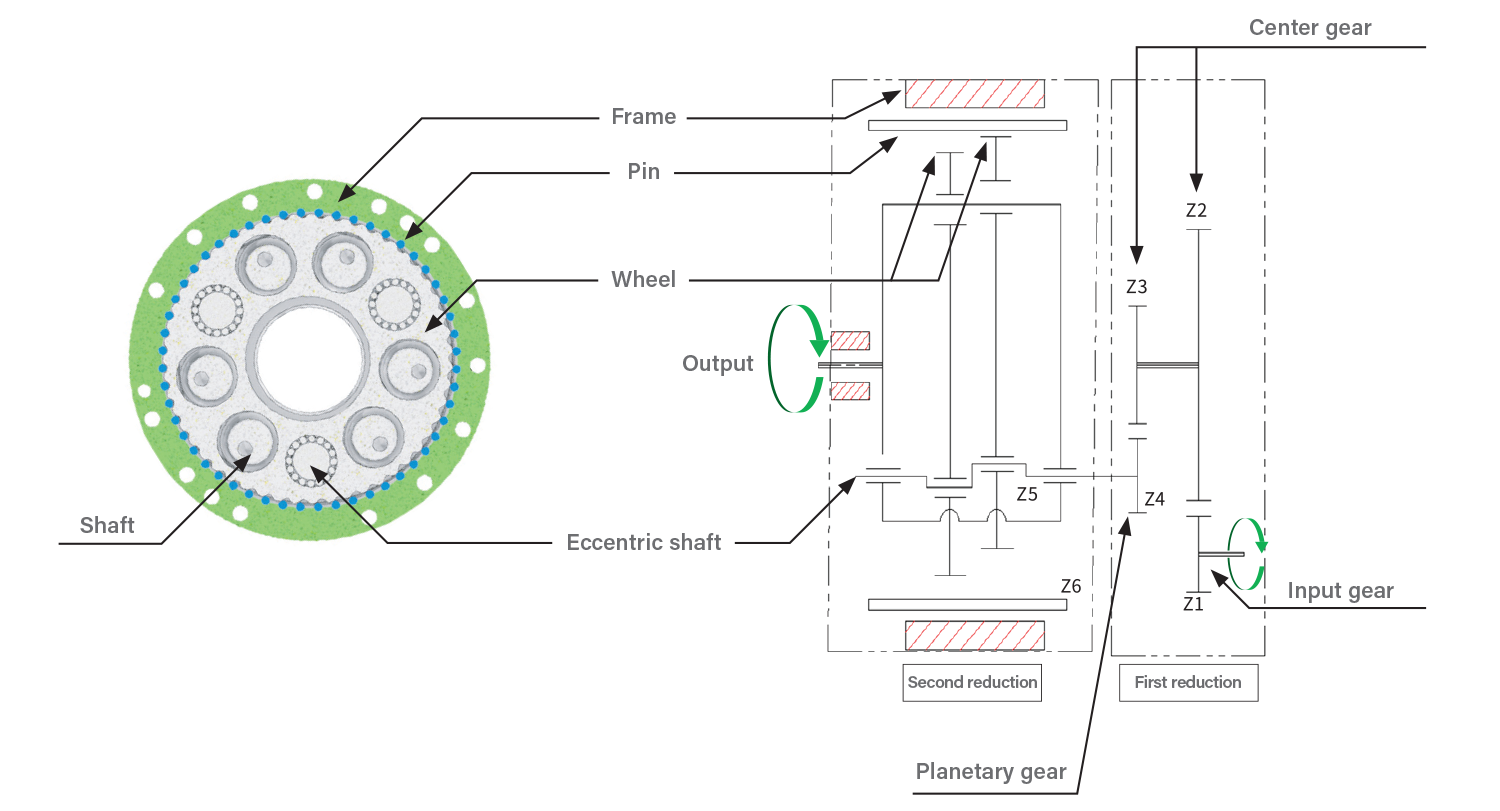

Mechanism diagram
