New Economy Gear Reducers

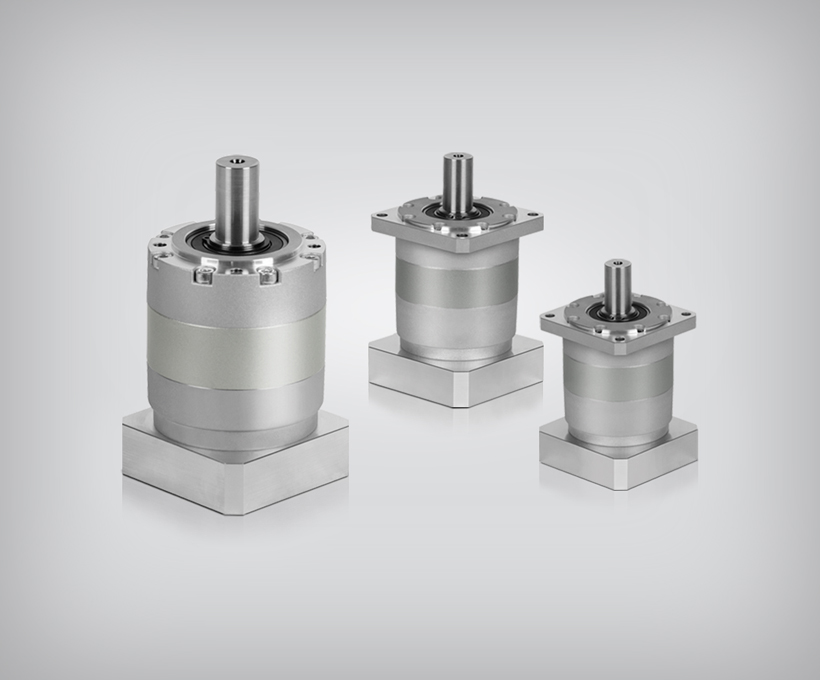

PR Series Economy Planetary Gear Reducers

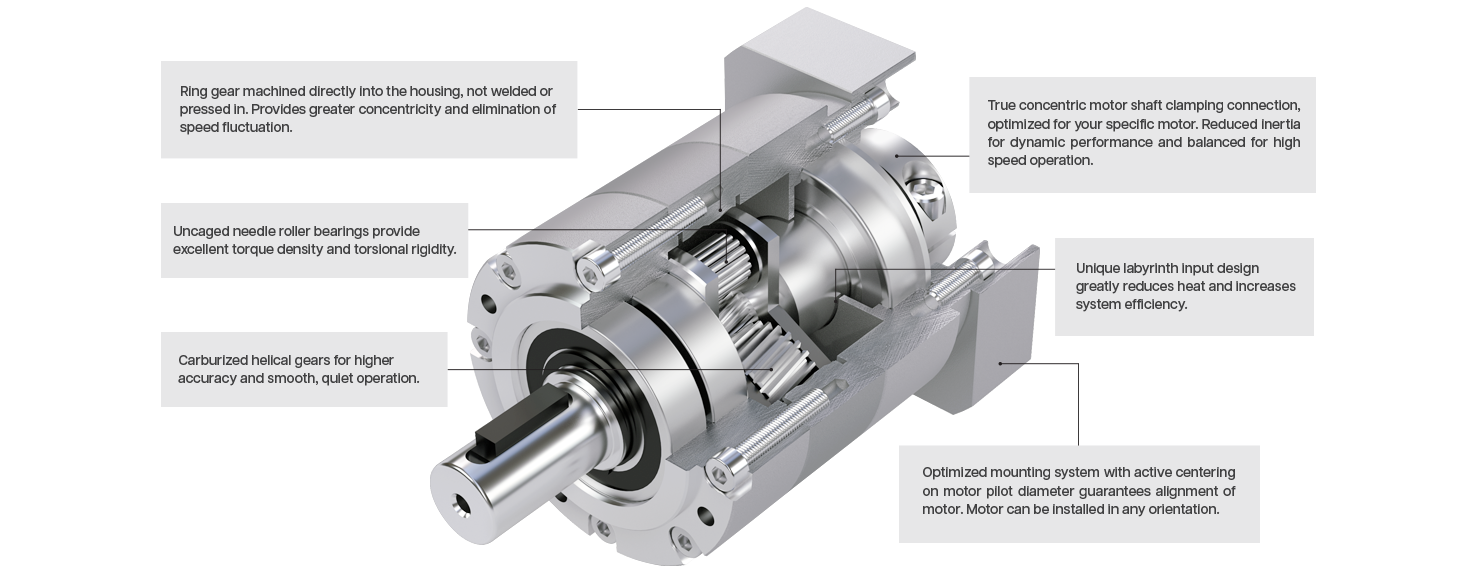

PR Series is the latest generation economy planetary gear reducers from NIDEC Drive Technology Corporation. The PR Series redefine the economy planetary gear reducer segment by featuring helical cut gearing and a robust internal structure. To date, this has not been accomplished by any other manufacturer. NIDEC DTC makes it possible through modular design philosophy and high-volume production capabilities. Our customers benefit from a cost-effective, flexible, reliable design that can be adapted into a wide range of servo and stepper motor axes.
The PR Series variants feature industry-standard output mounting geometry. The PRE Series offers a round output flange with tapped holes, while the PRF Series offers a B5 style square flange with through-holes. Frame sizes 062-160 are available with ratios from 3:1 to 100:1, covering the most common range of servomotor applications. At ≤ 8 arc-minutes of backlash, the PR products offer class-appropriate accuracy to handle various application requirements.
By utilizing the same motor mounting designs used by our VR products, our PR Series tap into the most comprehensive collection of standard off-the-shelf adapter plates in the industry.
Are you still using outdated planetary products with spur gears in your machine designs?
