Flat Type D
Open Type: Unit (Hollow Shaft)
WPU-□-□-SDH
The Next Generation Nidec FLEXWAVE – proving to be the superior choice for the next generation drive mechanisms in Robotics, Machine Tool, Medical Equipment, Semiconductor Manufacturing, Satellite Communications and Assembly Automation applications.
Technical Data
* For code details, check Dimensions Table
Ratio Matrix Availability
| Frame Size | 50 Reduction Ratio | 80 Reduction Ratio | 100 Reduction Ratio | 120 Reduction Ratio | 160 Reduction Ratio |
| 35 | ✔️ | ✔️ | ✔️ | ✔️ | ❌ |
| 42 | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| 50 | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| 63 | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| 80 | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Reducer Specifications
| Frame Size | Ratio R*1 | Nominal Output Torque *2 [Nm] | Maximum Output Torque *3 [Nm] | Emergency Stop Torque *4 [Nm] | Nominal Input Speed *5 [r/min) | Maximum Input Speed *6 [r/min) | Life *7 [hours] |
| 35 | 50 | 3.7 | 12 | 24 | 3000 | 8500 | 7000 |
| 35 | 80 | 5.4 | 16 | 29 | 3000 | 8500 | 7000 |
| 35 | 100 | 5.4 | 19 | 31 | 3000 | 8500 | 7000 |
| 42 | 50 | 11 | 23 | 48 | 3000 | 7300 | 7000 |
| 42 | 80 | 15 | 29 | 52 | 3000 | 7300 | 7000 |
| 42 | 100 | 16 | 37 | 55 | 3000 | 7300 | 7000 |
| 42 | 120 | 16 | 37 | 55 | 3000 | 7300 | 7000 |
| 50 | 50 | 17 | 39 | 69 | 3000 | 6500 | 7000 |
| 50 | 80 | 24 | 51 | 75 | 3000 | 6500 | 7000 |
| 50 | 100 | 28 | 57 | 76 | 3000 | 6500 | 7000 |
| 50 | 120 | 28 | 57 | 76 | 3000 | 6500 | 7000 |
| 63 | 50 | 27 | 96 | 127 | 5600 | 7000 | |
| 63 | 80 | 44 | 96 | 147 | 3000 | 5600 | 7000 |
| 63 | 100 | 47 | 110 | 152 | 3000 | 5600 | 7000 |
| 63 | 120 | 47 | 110 | 152 | 3000 | 5600 | 7000 |
| 80 | 05 | 53 | 151 | 268 | 3000 | 4800 | |
| 80 | 80 | 82 | 212 | 334 | 3000 | 4800 | 7000 |
| 80 | 100 | 98 | 233 | 359 | 3000 | 4800 | 7000 |
| 80 | 120 | 96 | 233 | 359 | 3000 | 4800 | 7000 |
- Reduction ratio is to be calculated by the formula in the previous page, using R value in this table.
- The maximum allowable value at the input rotation speed of 2000r/min
- The maximum torque when starting and stopping.
- The maximum torque when it receives shock.
- The maximum average input speed.
- The maximum input speed.
- The life time at the input rotation speed of 2000 r/min and nominal output torque.
Open Type: Unit (Hollow Shaft)

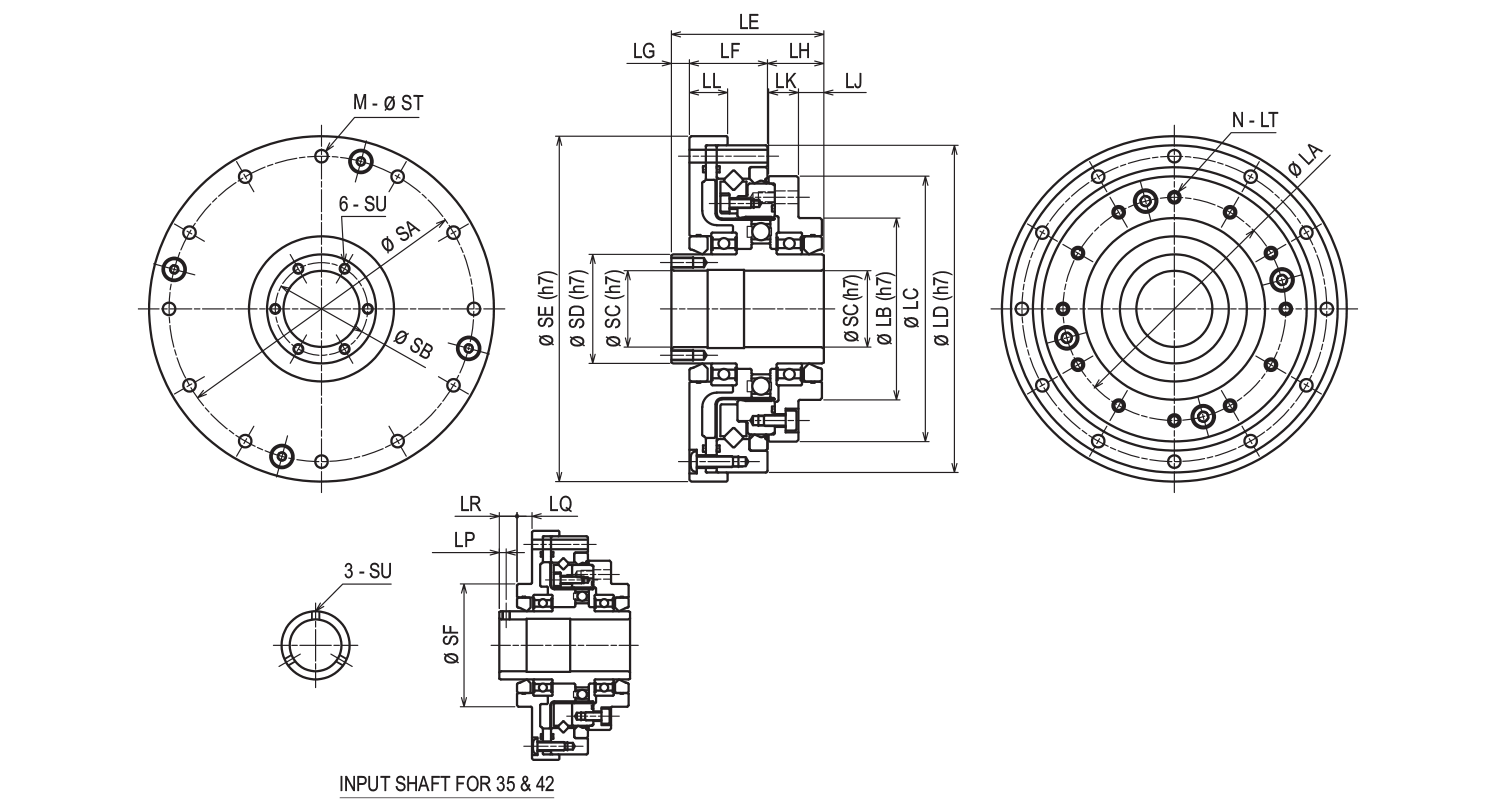

WPU-□-□-SDH Dimensions
| Frame Size | Weight Kg | Moment of Inertia x10-4kgm² |
| 35 | 0.49 | 0.0839 |
| 42 | 0.66 | 0.180 |
| 50 | 0.84 | 0.352 |
| 63 | 1.4 | 0.940 |
| 80 | 2.8 | 3.47 |
[mm]
| Frame Size | LA | LB | LC | LD | LE | LF | LG | LH | LJ | LK | LL | LP | LQ | LR |
| 35 | 43 | 36 | 52 | 70 | 45.5 | 19.5 | 12 | 14 | 6.5 | 7.5 | 9 | 2.5 | 5.5 | 6.5 |
| 42 | 52 | 45 | 62 | 80 | 48 | 20.5 | 12 | 15.5 | 7 | 8.5 | 10 | 2.5 | 5.5 | 6.5 |
| 50 | 61.4 | 50 | 73 | 90 | 42 | 21.5 | 5 | 15.5 | 7 | 8.5 | 10.5 | – | – | – |
| 63 | 76 | 60 | 87 | 110 | 46.5 | 24 | 6 | 16.5 | 6 | 10.5 | 10.5 | – | – | – |
| 80 | 99 | 75 | 114 | 142 | 55 | 28.6 | 7 | 19.4 | 7.5 | 11.9 | 12 | – | – | – |
| Frame Size | SA | SB | SC | SD | SE | SF | M | ST | SU | N | LT |
| 35 | 64 | – | 14 | 20 | 74 | 36 | 8 | 3.5 | M3 | 8 | M3 X 4.5, ∅ 3.5 X 5.5 |
| 42 | 74 | – | 19 | 25 | 84 | 45 | 12 | 3.5 | M3 | 12 | M3 X 4.5, ∅ 3.5 X 6.5 |
| 50 | 84 | 25.5 | 21 | 30 | 95 | – | 12 | 3.5 | M3 X 6 | 12 | M3 X 4.5, ∅ 3.5 X 6.5 |
| 63 | 102 | 33.5 | 29 | 38 | 115 | – | 12 | 4.5 | M3 X 6 | 12 | M4 X 6, ∅ 4.5 X 8.5 |
| 80 | 132 | 48 | 41 | 54 | 147 | – | 12 | 5.5 | M3 X 6 | 12 | M5 X 8, ∅ 5.5 X 7.6 |
