Gearhead Type

WPG-50-□-CR-8-□ (Input shaft diameter ≦ 8)

The Next Generation Nidec FLEXWAVE – WPG Series gearheads combine the industry leading accuracy, repeatability and torque-to-weight ratio of our WPU high torque strain wave units with the modularity, installation ease and universal motor mounting of our VR Series planetary products.

Downloads

Selection Configurator

Gearhead Type Catalog

Technical Data

* Mount code varies depending on the motor selection. Please refer to the ‘Reducer Selection Tool’ found on our website for further details, or alternatively please contact us for more information.

Ratio Matrix Availability

Frame Size50 Reduction Ratio80 Reduction Ratio100 Reduction Ratio120 Reduction Ratio160 Reduction Ratio
35✔✔✔❌❌
42✔✔✔✔❌
50✔✔✔✔✔
63✔✔✔✔✔
80✔✔✔✔✔

Reducer Specifications

Frame SizeRatio
R*1		Nominal
Output Torque *2
[Nm]		Maximum
Output Torque *3
[Nm]		Nominal
Input Speed *4
[r/min)		Maximum
Input Speed *5
[r/min)		Life *6
[hours]
505033733000650010000
508044963000650010000
50100521073000650010000
50120521133000650010000
50160521203000650010000
  1. Reduction ratio is to be calculated by the formula in the previous page, using R value in this table.
  2. The maximum allowable value at the input rotation speed of 2000r/min
  3. The maximum torque when starting and stopping.
  4. The maximum average input speed.
  5. The maximum input speed.
  6. The life time at the input rotation speed of 2000 r/min and nominal output torque.

Gearhead Type

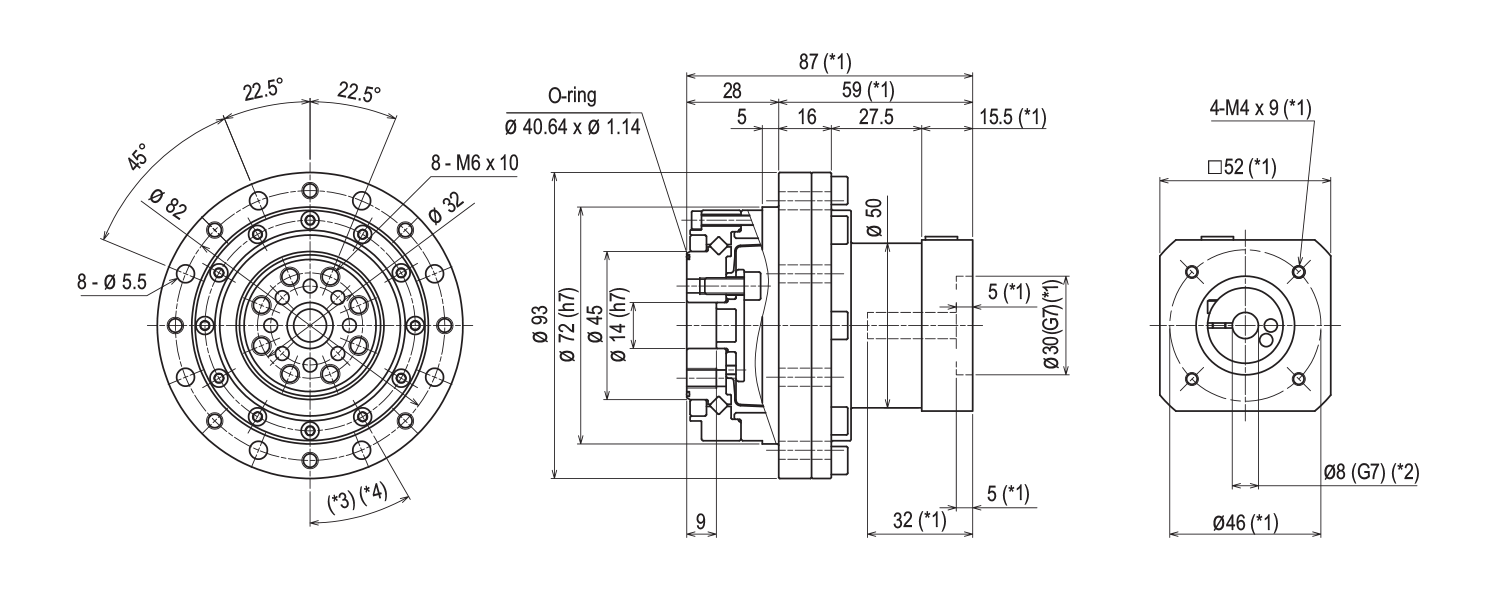

WPG-50-□-CR-8-□ (Input shaft diameter ≦ 8) Dimensions

  1. The length depends on the motor.
  2. Bushing will be inserted to adapt to motor shaft.
  3. The actual placement may differ.
  4. These bolts are for reducer assembly purposes and do not affect installation.

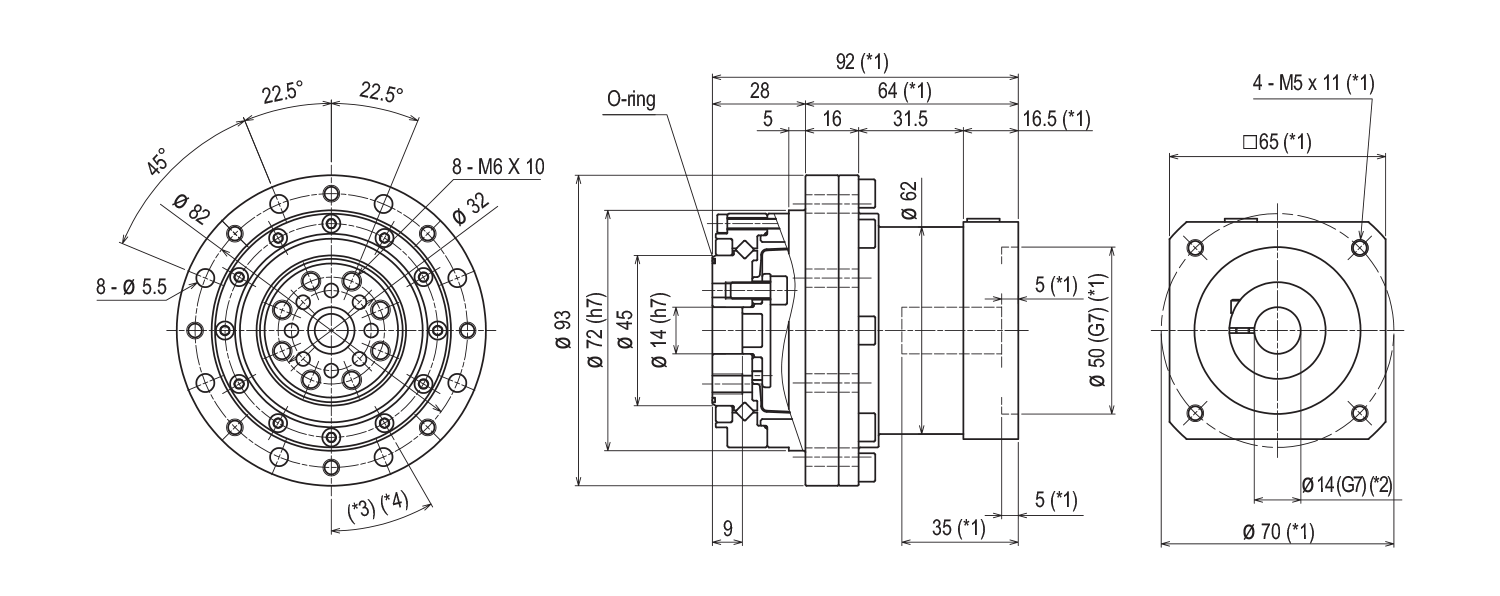

WPG-50-□-CR-14-□ (< 8 Input shaft diameter ≦ 14) Dimensions

  1. The length depends on the motor.
  2. Bushing will be inserted to adapt to motor shaft.
  3. The actual placement may differ.
  4. These bolts are for reducer assembly purposes and do not affect installation.
