STR 160V Frame
This versatile solution features programmable output motions with low-wear rolling contact. Larger inertia load transmission is achieved with internal cam ratio reduction while maintaining powerful torque with less motor horsepower. The STR’s unique no-backlash preloaded mechanism improves the overall dynamics to force output motions to a new level of rigidity and accurate servo controller performance. The compact design reduces footprint while offering high speed rotation with large bending moment capacity.

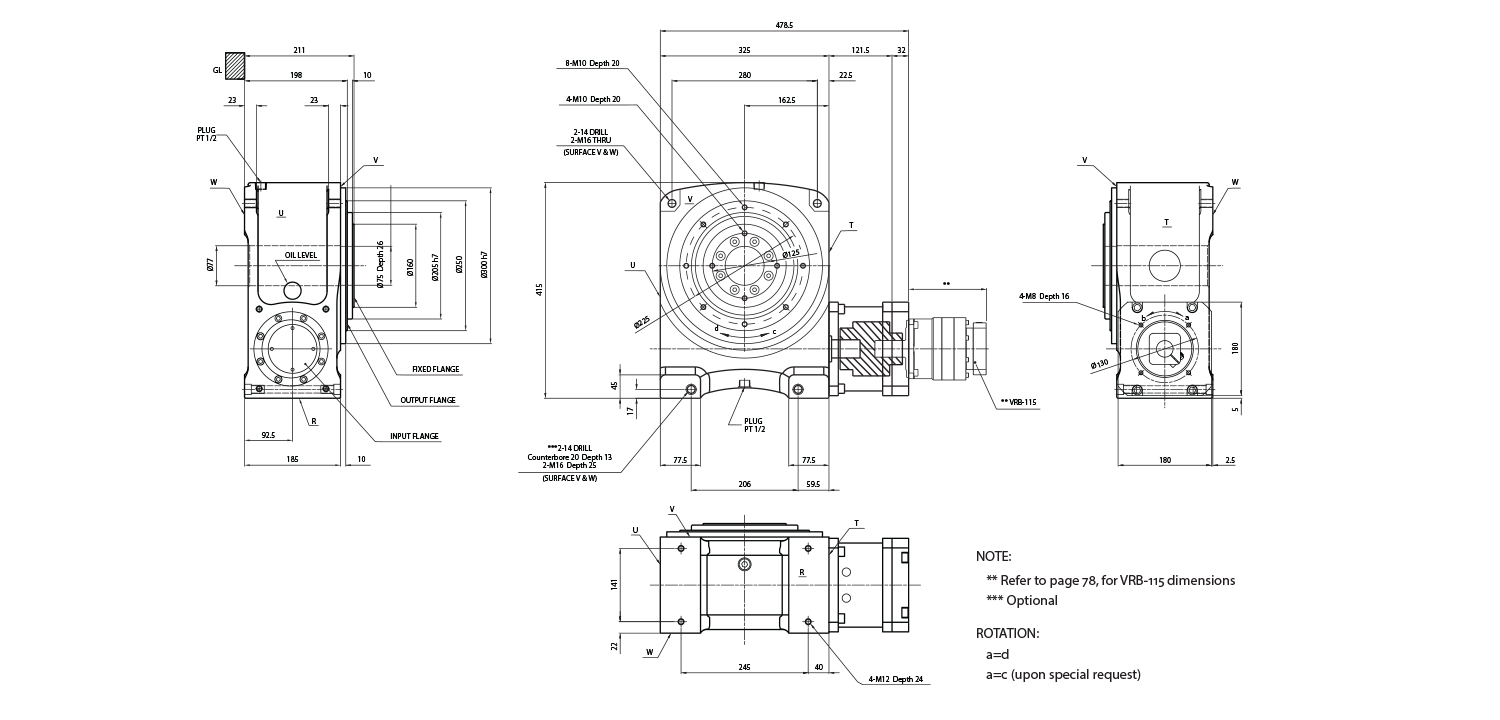

Technical Data
STR 160V 1 Stage Specifications with VRB 115
| Ratio | Unit | Note | 20 |
| Nominal Torque | [Nm] | *1 | 1165 |
| Acceleration Torque | [Nm] | – | 1888 |
| No Load Torque | [Nm] | *1 | 6.6 |
| Nominal Input Speed | [rpm] | *2 | 500 |
| Maximum Input Speed | [rpm] | *2 | 1000 |
| Reflected Inertia (Single) | [kg-m2x10-4] | *3 | 46.99 |
| Reflected Inertia (≤ Ø14) | [kg-m2x10-4] | *3 | – |
| Reflected Inertia (≤ Ø19) | [kg-m2x10-4] | *3 | – |
| Reflected Inertia (≤ Ø28) | [kg-m2x10-4] | *3 | – |
| Reflected Inertia (≤ Ø38) | [kg-m2x10-4] | *3 | – |
| Backlash | [arc-min] | – | 0 |
| Angular Transmission Accuracy | [arc-min] | – | ≤ 1.15 |
| Angular Repeatability Accuracy | [arc-min] | – | ±0.15 |
| Surface Runout | [µm (max)] | – | 20 |
| Weight | [kg] | – | 126 |
| Maximum Axial Load | [N] | – | 17170 |
| Maximum Radial Load | [N] | – | 7283 |
| Maximum Tilting Moment Load | [Nm] | – | 1216.3 |
| Efficiency | [%] | – | 80 |
| Protection Class | – | *4 | IP54 (IP65) |
STR 160V 2 Stage Specifications with VRB 115
| Ratio | Unit | Note | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 |
| Nominal Torque | [Nm] | *1 | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 |
| Acceleration Torque | [Nm] | – | 1888 | 1888 | 1888 | 1888 | 1888 | 1888 | 1888 | 1888 |
| No Load Torque | [Nm] | *1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Nominal Input Speed | [rpm] | *2 | 1500 | 2000 | 2500 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum Input Speed | [rpm] | *2 | 3000 | 4000 | 5000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Reflected Inertia | [kg-m2x10-4] | *3 | – | – | – | – | – | – | – | – |
| Reflected Inertia (≤ Ø8) | [kg-m2x10-4] | *3 | – | – | – | – | – | – | – | – |
| Reflected Inertia (≤ Ø14) | [kg-m2x10-4] | *3 | 3.417 | 2.117 | 1.717 | 1.417 | 1.217 | 1.117 | 1.097 | 1.097 |
| Reflected Inertia (≤ Ø19) | [kg-m2x10-4] | *3 | 5.417 | 4.217 | 3.717 | 3.417 | 3.317 | 3.217 | 3.117 | 3.117 |
| Reflected Inertia (≤ Ø28) | [kg-m2x10-4] | *3 | 13.12 | 12.12 | 11.12 | 11.12 | 11.12 | 11.12 | 11.12 | 11.12 |
| Backlash | [arc-min] | – | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Angular Transmission Accuracy | [arc-min] | – | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 |
| Angular Repeatability Accuracy | [arc-min] | – | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 |
| Surface Runout | [µm (max)] | – | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Weight | [kg] | – | 134 | 134 | 134 | 134 | 134 | 134 | 134 | 134 |
| Maximum Axial Load | [N] | – | 17170 | 17170 | 17170 | 17170 | 17170 | 17170 | 17170 | 17170 |
| Maximum Radial Load | [N] | – | 7283 | 7283 | 7283 | 7283 | 7283 | 7283 | 7283 | 7283 |
| Maximum Tilting Moment Load | [Nm] | – | 1216.3 | 1216.3 | 1216.3 | 1216.3 | 1216.3 | 1216.3 | 1216.3 | 1216.3 |
| Efficiency | [%] | – | 76 | 76 | 76 | 76 | 76 | 76 | 76 | 76 |
| Protection Class | – | *4 | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) |
STR 160V 3 Stage Specifications with VRB 115
| Ratio | Unit | Note | 300 | 320 | 400 | 500 | 560 | 600 | 700 |
| Nominal Torque | [Nm] | *1 | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 |
| Acceleration Torque | [Nm] | – | 1888 | 1888 | 1888 | 1888 | 1888 | 1888 | 1888 |
| No Load Torque | [Nm] | *1 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Nominal Input Speed | [rpm] | *2 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum Input Speed | [rpm] | *2 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Reflected Inertia (Single) | [kg-m2x10-4] | *3 | – | – | – | – | – | – | – |
| Reflected Inertia (≤ Ø8) | [kg-m2x10-4] | *3 | 0.547 | 0.597 | 0.517 | 0.497 | 0.557 | 0.407 | 0.487 |
| Reflected Inertia (≤ Ø14) | [kg-m2x10-4] | *3 | 0.977 | 1.037 | 0.947 | 0.937 | 0.997 | 0.857 | 0.927 |
| Reflected Inertia (≤ Ø19) | [kg-m2x10-4] | *3 | 2.917 | 3.017 | 2.917 | 2.917 | 2.917 | 2.817 | 2.817 |
| Reflected Inertia (≤ Ø28) | [kg-m2x10-4] | *3 | 11.12 | 11.12 | 11.12 | 11.12 | 11.12 | 10.12 | 11.12 |
| Backlash | [arc-min] | – | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Angular Transmission Accuracy | [arc-min] | – | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 |
| Angular Repeatability Accuracy | [arc-min] | – | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 |
| Surface Runout | [µm (max)] | – | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Weight | [kg] | – | 135 | 135 | 135 | 135 | 135 | 135 | 135 |
| Maximum Axial Load | [N] | – | 17170 | 17170 | 17170 | 17170 | 17170 | 17170 | 17170 |
| Maximum Radial Load | [N] | – | 7283 | 7283 | 7283 | 7283 | 7283 | 7283 | 7283 |
| Maximum Tilting Moment Load | [Nm] | – | 1216.3 | 1216.3 | 1216.3 | 1216.3 | 1216.3 | 1216.3 | 1216.3 |
| Efficiency | [%] | – | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
| Protection Class | – | *4 | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) |
| Ratio | Unit | Note | 800 | 900 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 |
| Nominal Torque | [Nm] | *1 | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 |
| Acceleration Torque | [Nm] | – | 1888 | 1888 | 1888 | 1888 | 1888 | 1888 | 1888 | 1888 |
| No Load Torque | [Nm] | *1 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Nominal Input Speed | [rpm] | *2 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum Input Speed | [rpm] | *2 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Reflected Inertia (Single) | [kg-m2x10-4] | *3 | – | – | – | – | – | – | – | – |
| Reflected Inertia (≤ Ø8) | [kg-m2x10-4] | *3 | 0.397 | 0.487 | 0.397 | 0.397 | 0.397 | 0.397 | 0.387 | 0.387 |
| Reflected Inertia (≤ Ø14) | [kg-m2x10-4] | *3 | 0.847 | 0.917 | 0.847 | 0.847 | 0.847 | 0.847 | 0.847 | 0.847 |
| Reflected Inertia (≤ Ø19) | [kg-m2x10-4] | *3 | 2.817 | 2.812 | 2.817 | 2.817 | 2.817 | 2.817 | 2.817 | 2.817 |
| Reflected Inertia (≤ Ø28) | [kg-m2x10-4] | *3 | 10.12 | 11.12 | 10.12 | 10.12 | 10.12 | 10.12 | 10.12 | 10.12 |
| Backlash | [arc-min] | – | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Angular Transmission Accuracy | [arc-min] | – | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 |
| Angular Repeatability Accuracy | [arc-min] | – | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 |
| Surface Runout | [µm (max)] | – | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Weight | [kg] | – | 135 | 135 | 135 | 135 | 135 | 135 | 135 | 135 |
| Maximum Axial Load | [N] | – | 17170 | 17170 | 17170 | 17170 | 17170 | 17170 | 17170 | 17170 |
| Maximum Radial Load | [N] | – | 7283 | 7283 | 7283 | 7283 | 7283 | 7283 | 7283 | 7283 |
| Maximum Tilting Moment Load | [Nm] | – | 1216.3 | 1216.3 | 1216.3 | 1216.3 | 1216.3 | 1216.3 | 1216.3 | 1216.3 |
| Efficiency | [%] | – | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
| Protection Class | – | *4 | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) |
- At nominal input speed
- Speeds are at the actuator input. Limits when used with additional gearbox are higher
- At input shaft
- IP65 (wash-down) is available as an option. Contact Nidec Drive Technology for more details and our food grade options
