STR 100V Frame

This versatile solution features programmable output motions with low-wear rolling contact. Larger inertia load transmission is achieved with internal cam ratio reduction while maintaining powerful torque with less motor horsepower. The STR’s unique no-backlash preloaded mechanism improves the overall dynamics to force output motions to a new level of rigidity and accurate servo controller performance. The compact design reduces footprint while offering high speed rotation with large bending moment capacity.

Downloads

Selection Configurator

STR 100V Frame

Instruction Manual

Reducer Installation Manual

Technical Data

STR 100V Frame 1 Stage with VRB 090

RatioUnitNote20
Nominal Torque[Nm]*1330
Acceleration Torque[Nm]–565
No Load Torque[Nm]*12.6
Nominal Input Speed[rpm]*2600
Maximum Input Speed[rpm]*22000
Reflected Inertia (Single)[kg-m2x10-4]*38.687
Reflected Inertia (≤ Ø8)[kg-m2x10-4]*3–
Reflected Inertia (≤ Ø14)[kg-m2x10-4]*3–
Reflected Inertia (≤ Ø19)[kg-m2x10-4]*3–
Reflected Inertia (≤ Ø28)[kg-m2x10-4]*3–
Backlash[arc-min]–0
Angular Transmission Accuracy[arc-min]–≤ 0.7
Angular Repeatability Accuracy[arc-min]–±0.08
Surface Runout[µm (max)]–10
Weight[kg]–21.5
Maximum Axial Load[N]–3724
Maximum Radial Load[N]–3109
Maximum Tilting Moment Load[Nm]–284
Efficiency[%]–82
Protection Class–*4IP54 (IP65)

STR 100V Frame 2 Stage with VRB 090

RatioUnitNote6080100120140160180200
Nominal Torque[Nm]*1330330330330330330330330
Acceleration Torque[Nm]–565565565565565565565565
No Load Torque[Nm]*10.30.30.30.30.30.30.30.3
Nominal Input Speed[rpm]*218002400300030003000300030003000
Maximum Input Speed[rpm]*260006000600060006000600060006000
Reflected Inertia (Single)[kg-m2x10-4]*3––––––––
Reflected Inertia (≤ Ø8)[kg-m2x10-4]*3––––––––
Reflected Inertia (≤ Ø14)[kg-m2x10-4]*30.7420.5120.4220.3820.3420.3320.3120.312
Reflected Inertia (≤ Ø19)[kg-m2x10-4]*31.2220.9720.8820.8420.8120.7920.7820.772
Reflected Inertia (≤ Ø28)[kg-m2x10-4]*33.2223.0222.9222.8222.8222.8222.8222.822
Backlash[arc-min]–00000000
Angular Transmission Accuracy[arc-min]–≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7
Angular Repeatability Accuracy[arc-min]–±0.08±0.08±0.08±0.08±0.08±0.08±0.08±0.08
Surface Runout[µm (max)]–1010101010101010
Weight[kg]–25.225.225.225.225.225.225.225.2
Maximum Axial Load[N]–37243724372437243724372437243724
Maximum Radial Load[N]–31093109310931093109310931093109
Maximum Tilting Moment Load[Nm]–284284284284284284284284
Efficiency[%]–7878787878787878
Protection Class–*4IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)

STR 100V Frame 3 Stage with VRB 090

RatioUnitNote300320400500560600700
Nominal Torque[Nm]*1330330330330330330330
Acceleration Torque[Nm]–565565565565565565565
No Load Torque[Nm]*10.20.20.20.20.20.20.2
Nominal Input Speed[rpm]*23000300030003000300030003000
Maximum Input Speed[rpm]*26000600060006000600060006000
Reflected Inertia (Single)[kg-m2x10-4]*3–––––––
Reflected Inertia (≤ Ø8)[kg-m2x10-4]*30.1520.1720.1520.1420.1620.1220.142
Reflected Inertia (≤ Ø14)[kg-m2x10-4]*30.3020.3220.3020.3020.3120.2720.292
Reflected Inertia (≤ Ø19)[kg-m2x10-4]*30.7420.7620.7420.7320.7520.7220.732
Reflected Inertia (≤ Ø28)[kg-m2x10-4]*32.7222.8222.7222.7222.7222.6222.722
Backlash[arc-min]–0000000
Angular Transmission Accuracy[arc-min]–≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7
Angular Repeatability Accuracy[arc-min]–±0.08±0.08±0.08±0.08±0.08±0.08±0.08
Surface Runout[µm (max)]–10101010101010
Weight[kg]–25.725.725.725.725.725.725.7
Maximum Axial Load[N]–3724372437243724372437243724
Maximum Radial Load[N]–3109310931093109310931093109
Maximum Tilting Moment Load[Nm]–284284284284284284284
Efficiency[%]–74747474747474
Protection Class–*4IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)
RatioUnitNote800900100012001400160018002000
Nominal Torque[Nm]*1330330330330330330330330
Acceleration Torque[Nm]–565565565565565565565565
No Load Torque[Nm]*10.20.20.20.20.20.20.20.2
Nominal Input Speed[rpm]*230003000300030003000300030003000
Maximum Input Speed[rpm]*260006000600060006000600060006000
Reflected Inertia (Single)[kg-m2x10-4]*3––––––––
Reflected Inertia (≤ Ø8)[kg-m2x10-4]*30.1210.1420.1200.1200.1190.1190.1190.119
Reflected Inertia (≤ Ø14)[kg-m2x10-4]*30.2720.2920.2720.2720.2720.2720.2720.272
Reflected Inertia (≤ Ø19)[kg-m2x10-4]*30.7220.7320.7120.7120.7120.7120.7120.712
Reflected Inertia (≤ Ø28)[kg-m2x10-4]*32.2662.7222.6222.6222.6222.6222.6222.622
Backlash[arc-min]–00000000
Angular Transmission Accuracy[arc-min]–≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7
Angular Repeatability Accuracy[arc-min]–±0.08±0.08±0.08±0.08±0.08±0.08±0.08±0.08
Surface Runout[µm (max)]–1010101010101010
Weight[kg]–25.725.725.725.725.725.725.725.7
Maximum Axial Load[N]–37243724372437243724372437243724
Maximum Radial Load[N]–31093109310931093109310931093109
Maximum Tilting Moment Load[Nm]–284284284284284284284284
Efficiency[%]–7474747474747474
Protection Class–*4IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)
  1. At nominal input speed
  2. Speeds are at the actuator input. Limits when used with additional gearbox are higher
  3. At input shaft
  4. IP65 (wash-down) is available as an option. Contact Nidec Drive Technology for more details and our food grade options

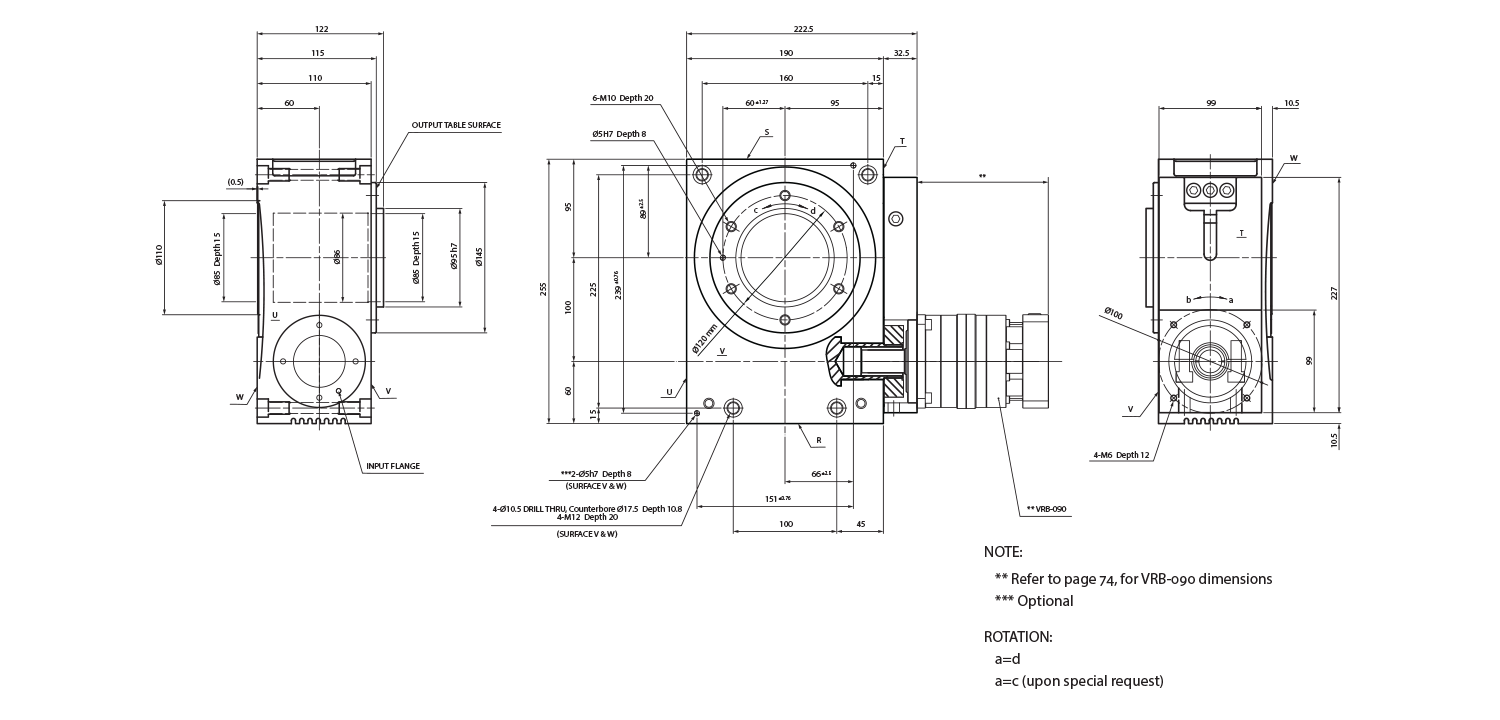

STR 100 Dimensions with VRB 090

* Refer to VRB-090 dimensions
