STR 080E Frame

This versatile solution features programmable output motions with low-wear rolling contact. Larger inertia load transmission is achieved with internal cam ratio reduction while maintaining powerful torque with less motor horsepower. The STR’s unique no-backlash preloaded mechanism improves the overall dynamics to force output motions to a new level of rigidity and accurate servo controller performance. The compact design reduces footprint while offering high speed rotation with large bending moment capacity.

Downloads

Selection Configurator

STR 080 Frame

Instruction Manual

Reducer Installation Manual

Technical Data

STR 080E Frame 1 Stage with EVB 060

RatioUnitNote20
Nominal Torque[Nm]*1113
Acceleration Torque[Nm]–202
No Load Torque[Nm]*11.3
Nominal Input Speed[rpm]*2700
Maximum Input Speed[rpm]*22500
Reflected Inertia (Single)[kg-m2x10-4]*33.066
Reflected Inertia (≤ Ø8)[kg-m2x10-4]*3–
Reflected Inertia (≤ Ø14)[kg-m2x10-4]*3–
Reflected Inertia (≤ Ø19)[kg-m2x10-4]*3–
Backlash[arc-min]–0
Angular Transmission Accuracy[arc-min]–≤ 0.7
Angular Repeatability Accuracy[arc-min]–±0.08
Surface Runout[µm (max)]–10
Weight[kg]–11.6
Maximum Axial Load[N]–3302
Maximum Radial Load[N]–2819
Maximum Tilting Moment Load[Nm]–210
Efficiency[%]–80
Protection Class–*4IP54 (IP65)

STR 080E Frame 2 Stage with EVB 060

RatioUnitNote6080100120140160180200
Nominal Torque[Nm]*1113113113113113113113113
Acceleration Torque[Nm]–202202202202202202202202
No Load Torque[Nm]*10.40.40.40.40.40.40.40.4
Nominal Input Speed[rpm]*221002100210021002100210021003000
Maximum Input Speed[rpm]*260006000600060006000600060006000
Reflected Inertia (Single)[kg-m2x10-4]*3––––––––
Reflected Inertia (≤ Ø8)[kg-m2x10-4]*30.3190.2740.2560.2470.2420.2380.2360.235
Reflected Inertia (≤ Ø14)[kg-m2x10-4]*30.3940.3490.3310.3220.3170.3130.3110.310
Reflected Inertia (≤ Ø19)[kg-m2x10-4]*30.5830.5380.5210.5120.5060.5030.5010.499
Backlash[arc-min]–00000000
Angular Transmission Accuracy[arc-min]–≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7
Angular Repeatability Accuracy[arc-min]–±0.08±0.08±0.08±0.08±0.08±0.08±0.08±0.08
Surface Runout[µm (max)]–1010101010101010
Weight[kg]–13.413.413.413.413.413.413.413.4
Maximum Axial Load[N]–33023302330233023302330233023302
Maximum Radial Load[N]–28192819281928192819281928192819
Maximum Tilting Moment Load[Nm]–210210210210210210210210
Efficiency[%]–7272727272727272
Protection Class–*4IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)

STR 080E Frame 3 Stage with EVB 060

RatioUnitNote300320400500560600700
Nominal Torque[Nm]*1113113113113113113113
Acceleration Torque[Nm]–202202202202202202202
No Load Torque[Nm]*10.30.30.30.30.30.30.3
Nominal Input Speed[rpm]*23000300030003000300030003000
Maximum Input Speed[rpm]*26000600060006000600060006000
Reflected Inertia (Single)[kg-m2x10-4]*3–––––––
Reflected Inertia (≤ Ø8)[kg-m2x10-4]*30.0810.0870.0790.0790.0850.0700.078
Reflected Inertia (≤ Ø14)[kg-m2x10-4]*30.1260.132c0.1230.1300.1140.123
Reflected Inertia (≤ Ø19)[kg-m2x10-4]*3–––––––
Backlash[arc-min]–0000000
Angular Transmission Accuracy[arc-min]–≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7
Angular Repeatability Accuracy[arc-min]–±0.08±0.08±0.08±0.08±0.08±0.08±0.08
Surface Runout[µm (max)]–10101010101010
Weight[kg]–13.213.213.213.213.213.213.2
Maximum Axial Load[N]–3302330233023302330233023302
Maximum Radial Load[N]–2819281928192819281928192819
Maximum Tilting Moment Load[Nm]–210210210210210210210
Efficiency[%]–68686868686868
Protection Class–*4IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)
RatioUnitNote800900100012001400160018002000
Nominal Torque[Nm]*1113113113113113113113113
Acceleration Torque[Nm]–202202202202202202202202
No Load Torque[Nm]*10.30.30.30.30.30.30.30.3
Nominal Input Speed[rpm]*230003000300030003000300030003000
Maximum Input Speed[rpm]*260006000600060006000600060006000
Reflected Inertia (Single)[kg-m2x10-4]*3––––––––
Reflected Inertia (≤ Ø8)[kg-m2x10-4]*30.0690.0780.0690.0690.0690.0690.0690.069
Reflected Inertia (≤ Ø14)[kg-m2x10-4]*30.1140.1230.1140.1140.1130.1130.1130.113
Reflected Inertia (≤ Ø19)[kg-m2x10-4]*3––––––––
Backlash[arc-min]–00000000
Angular Transmission Accuracy[arc-min]–≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7≤ 0.7
Angular Repeatability Accuracy[arc-min]–±0.08±0.08±0.08±0.08±0.08±0.08±0.08±0.08
Surface Runout[µm (max)]–1010101010101010
Weight[kg]–13.213.213.213.213.213.213.213.2
Maximum Axial Load[N]–33023302330233023302330233023302
Maximum Radial Load[N]–28192819281928192819281928192819
Maximum Tilting Moment Load[Nm]–210210210210210210210210
Efficiency[%]–6868686868686868
Protection Class–*4IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)IP54 (IP65)
  1. At nominal input speed
  2. Speeds are at the actuator input. Limits when used with additional gearbox are higher
  3. At input shaft
  4. IP65 (wash-down) is available as an option. Contact Nidec Drive Technology for more details and our food grade options

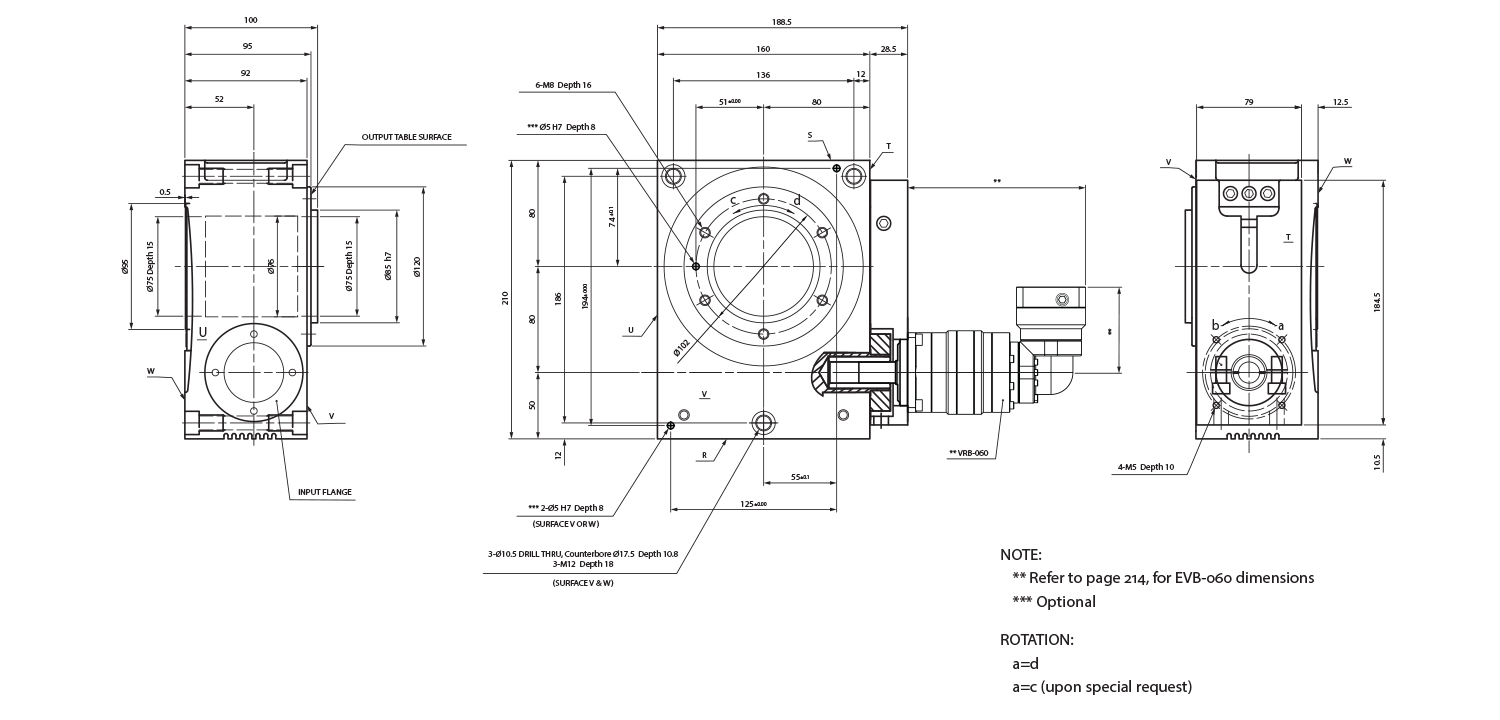

STR 080E Dimensions with EVB 060

* Refer to EVB-060 dimensions
