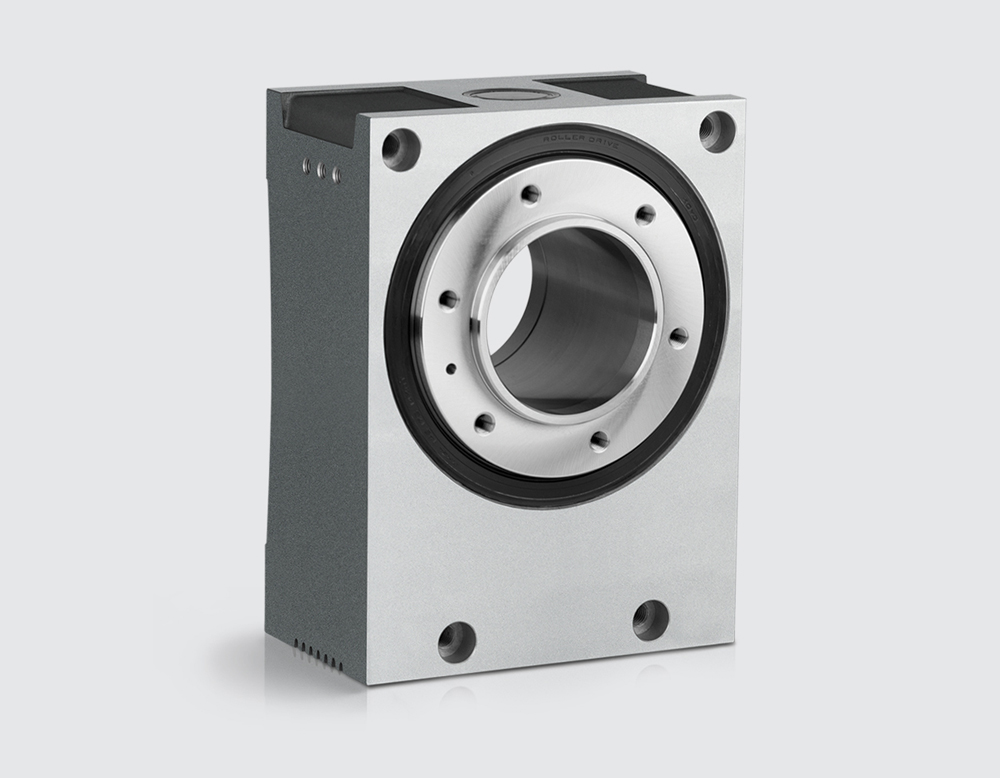

STR 063V Frame
This versatile solution features programmable output motions with low-wear rolling contact. Larger inertia load transmission is achieved with internal cam ratio reduction while maintaining powerful torque with less motor horsepower. The STR’s unique no-backlash preloaded mechanism improves the overall dynamics to force output motions to a new level of rigidity and accurate servo controller performance. The compact design reduces footprint while offering high speed rotation with large bending moment capacity.

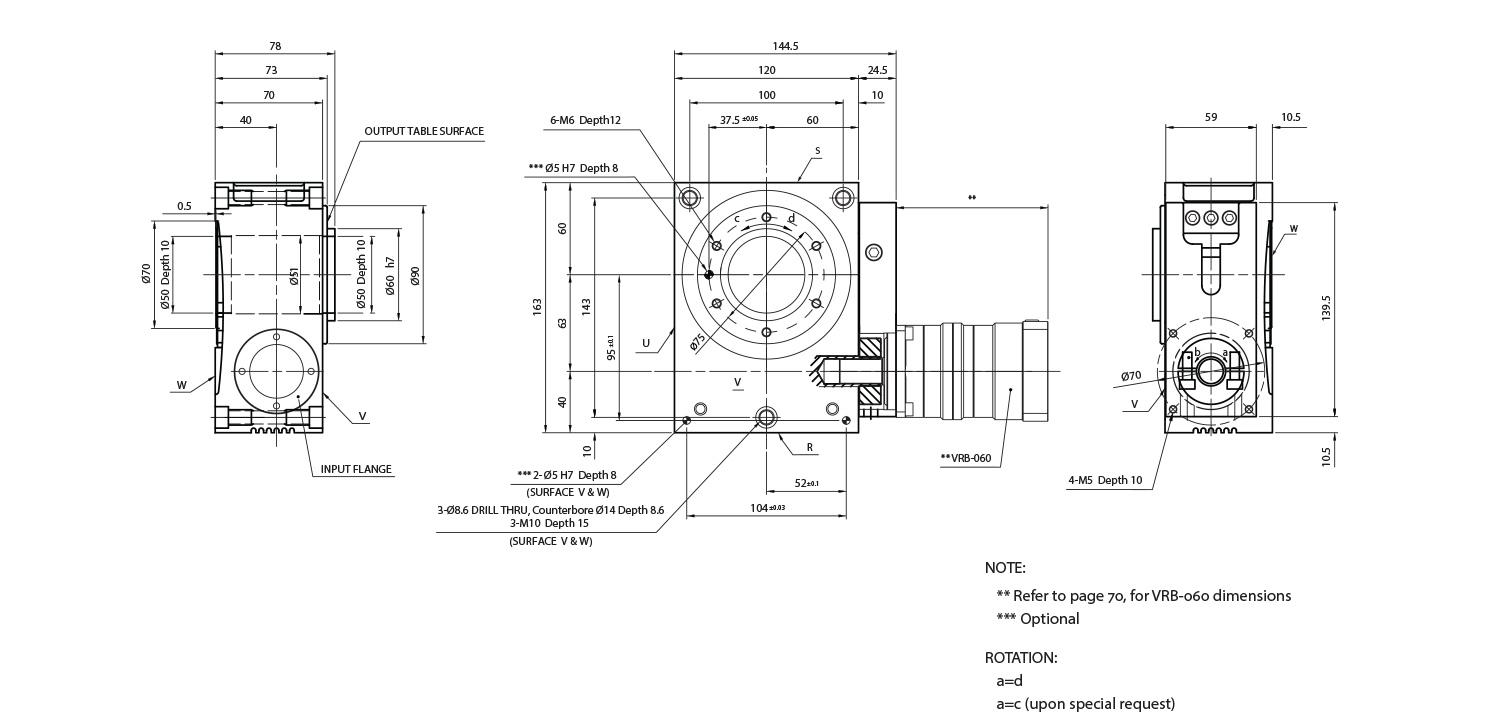

Technical Data
STR 063V Frame 1 Stage Specifications with VRB 060
| Ratio | Unit | Note | 20 |
| Nominal Torque | [Nm] | *1 | 69 |
| Acceleration Torque | [Nm] | – | 129 |
| No Load Torque | [Nm] | *1 | 0.8 |
| Nominal Input Speed | [rpm] | *2 | 800 |
| Maximum Input Speed | [rpm] | *2 | 3000 |
| Reflected Inertia (Single) | [kg-m2x10-4] | *3 | 0.862 |
| Reflected Inertia (≤ Ø8) | [kg-m2x10-4] | *3 | – |
| Reflected Inertia (≤ Ø14) | [kg-m2x10-4] | *3 | – |
| Reflected Inertia (≤ Ø19) | [kg-m2x10-4] | *3 | – |
| Backlash | [arc-min] | – | 0 |
| Angular Transmission Accuracy | [arc-min] | – | ≤ 1.0 |
| Angular Repeatability Accuracy | [arc-min] | – | ±0.1 |
| Surface Runout | [µm (max)] | – | 10 |
| Weight | [kg] | – | 5.6 |
| Maximum Axial Load | [N] | – | 1657 |
| Maximum Radial Load | [N] | – | 1359 |
| Maximum Tilting Moment Load | [Nm] | – | 79 |
| Efficiency | [%] | – | 82 |
| Protection Class | – | *4 | IP54 (IP65) |
STR 063V Frame 2 Stage Specifications with VRB 060
| Ratio | Unit | Note | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 |
| Nominal Torque | [Nm] | *1 | 69 | 69 | 69 | 69 | 69 | 69 | 69 | 69 |
| Acceleration Torque | [Nm] | – | 129 | 129 | 129 | 129 | 129 | 129 | 129 | 129 |
| No Load Torque | [Nm] | *1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Nominal Input Speed | [rpm] | *2 | 2400 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum Input Speed | [rpm] | *2 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Reflected Inertia (Single) | [kg-m2x10-4] | *3 | – | – | – | – | – | – | – | – |
| Reflected Inertia (≤ Ø8) | [kg-m2x10-4] | *3 | 0.142 | 0.097 | 0.079 | 0.070 | 0.064 | 0.061 | 0.059 | 0.058 |
| Reflected Inertia (≤ Ø14) | [kg-m2x10-4] | *3 | 0.222 | 0.172 | 0.162 | 0.152 | 0.142 | 0.142 | 0.142 | 0.142 |
| Reflected Inertia (≤ Ø19) | [kg-m2x10-4] | *3 | 0.432 | 0.382 | 0.362 | 0.362 | 0.352 | 0.352 | 0.342 | 0.342 |
| Backlash | [arc-min] | – | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Angular Transmission Accuracy | [arc-min] | – | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 |
| Angular Repeatability Accuracy | [arc-min] | – | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Surface Runout | [µm (max)] | – | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Weight | [kg] | – | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 |
| Maximum Axial Load | [N] | – | 1657 | 1657 | 1657 | 1657 | 1657 | 1657 | 1657 | 1657 |
| Maximum Radial Load | [N] | – | 1359 | 1359 | 1359 | 1359 | 1359 | 1359 | 1359 | 1359 |
| Maximum Tilting Moment Load | [Nm] | – | 79 | 79 | 79 | 79 | 79 | 79 | 79 | 79 |
| Efficiency | [%] | – | 78 | 78 | 78 | 78 | 78 | 78 | 78 | 78 |
| Protection Class | – | *4 | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) |
STR 063V 3 Stage Specifications with VRB 060
| Ratio | Unit | Note | 300 | 320 | 400 | 500 | 560 | 600 | 700 |
| Nominal Torque | [Nm] | *1 | 69 | 69 | 69 | 69 | 69 | 69 | 69 |
| Acceleration Torque | [Nm] | – | 129 | 129 | 129 | 129 | 129 | 129 | 129 |
| No Load Torque | [Nm] | *1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Nominal Input Speed | [rpm] | *2 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum Input Speed | [rpm] | *2 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Reflected Inertia (Single) | [kg-m2x10-4] | *3 | – | – | – | – | – | – | – |
| Reflected Inertia (≤ Ø8) | [kg-m2x10-4] | *3 | 0.057 | 0.059 | 0.056 | 0.055 | 0.057 | 0.051 | 0.055 |
| Reflected Inertia (≤ Ø14) | [kg-m2x10-4] | *3 | 0.142 | 0.142 | 0.132 | 0.132 | 0.142 | 0.132 | 0.132 |
| Reflected Inertia (≤ Ø19) | [kg-m2x10-4] | *3 | 0.352 | 0.362 | 0.352 | 0.352 | 0.362 | 0.342 | 0.352 |
| Backlash | [arc-min] | – | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Angular Transmission Accuracy | [arc-min] | – | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 |
| Angular Repeatability Accuracy | [arc-min] | – | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Surface Runout | [µm (max)] | – | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Weight | [kg] | – | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| Maximum Axial Load | [N] | – | 1657 | 1657 | 1657 | 1657 | 1657 | 1657 | 1657 |
| Maximum Radial Load | [N] | – | 1359 | 1359 | 1359 | 1359 | 1359 | 1359 | 1359 |
| Maximum Tilting Moment Load | [Nm] | – | 79 | 79 | 79 | 79 | 79 | 79 | 79 |
| Efficiency | [%] | – | 74 | 74 | 74 | 74 | 74 | 74 | 74 |
| Protection Class | – | *4 | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) |
| Ratio | Unit | Note | 800 | 900 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 |
| Nominal Torque | [Nm] | *1 | 69 | 69 | 69 | 69 | 69 | 69 | 69 | 69 |
| Acceleration Torque | [Nm] | – | 129 | 129 | 129 | 129 | 129 | 129 | 129 | 129 |
| No Load Torque | [Nm] | *1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Nominal Input Speed | [rpm] | *2 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum Input Speed | [rpm] | *2 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Reflected Inertia (Single) | [kg-m2x10-4] | *3 | – | – | – | – | – | – | – | – |
| Reflected Inertia (≤ Ø8) | [kg-m2x10-4] | *3 | 0.051 | 0.055 | 0.051 | 0.051 | 0.051 | 0.051 | 0.051 | 0.051 |
| Reflected Inertia (≤ Ø14) | [kg-m2x10-4] | *3 | 0.132 | 0.132 | 0.132 | 0.132 | 0.132 | 0.132 | 0.132 | 0.132 |
| Reflected Inertia (≤ Ø19) | [kg-m2x10-4] | *3 | 0.342 | 0.352 | 0.342 | 0.342 | 0.342 | 0.342 | 0.342 | 0.342 |
| Backlash | [arc-min] | – | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Angular Transmission Accuracy | [arc-min] | – | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 |
| Angular Repeatability Accuracy | [arc-min] | – | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Surface Runout | [µm (max)] | – | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Weight | [kg] | – | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| Maximum Axial Load | [N] | – | 1657 | 1657 | 1657 | 1657 | 1657 | 1657 | 1657 | 1657 |
| Maximum Radial Load | [N] | – | 1359 | 1359 | 1359 | 1359 | 1359 | 1359 | 1359 | 1359 |
| Maximum Tilting Moment Load | [Nm] | – | 79 | 79 | 79 | 79 | 79 | 79 | 79 | 79 |
| Efficiency | [%] | – | 74 | 74 | 74 | 74 | 74 | 74 | 74 | 74 |
| Protection Class | – | *4 | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) | IP54 (IP65) |
- At nominal input speed
- Speeds are at the actuator input. Limits when used with additional gearbox are higher
- At input shaft
- IP65 (wash-down) is available as an option. Contact Nidec Drive Technology for more details and our food grade options
